Y2系列电机是广泛应用的全封闭，鼠笼型三相异步电机，为铝质外壳。本厂生产63、71、80和90四个机座号。安装尺寸符合IEC标准，功率等级及效率符合DIN标准，防护等级为F级，冷却方式为ICO141。
本系列电机设计新颖，造型美观，噪声低，效率高，维护方便，适用于小型机床、印刷、包装机械、纺织机械和医疗器械等。
本系列内包含YS系列。
YVF2系列的变频调速电机和YD变极变速电机，上述各系列电机本厂均可提供。
使用条件
环境温度：-15～+40℃
海拔：不超过1000M

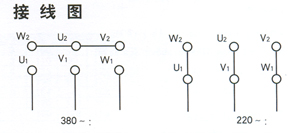

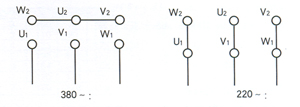

电压：380V/220V
工作方式：连续(SI)
技术数据：
| 型号 |
功率(W) |
电流(A) |
电压(V) |
频率(Hz) |
转速(r/min) |
效率(%) |
功率因数cosΦ |
起动转矩/额定转矩(倍) |
起动电流/额定电流(倍) |
最大转矩/额定转矩(倍) |
| Y2-631-2 |
180 |
0.53/0.91 |
380/220 |
50 |
2800 |
69 |
0.75 |
2.3 |
6.0 |
2.4 |
| Y2-632-2 |
250 |
0.67/1.16 |
380/220 |
50 |
2800 |
72 |
0.78 |
2.3 |
6.0 |
2.4 |
| Y2-631-4 |
120 |
0.48/0.83 |
380/220 |
50 |
1400 |
60 |
0.63 |
2.4 |
6.0 |
2.4 |
| Y2-632-4 |
180 |
0.65/1.12 |
380/220 |
50 |
1400 |
64 |
0.66 |
2.4 |
6.0 |
2.4 |
| Y2-711-2 |
370 |
0.95/1.65 |
380/220 |
50 |
2800 |
73.5 |
0.80 |
2.3 |
6.0 |
2.4 |
| Y2-712-2 |
550 |
1.35/2.33 |
380/220 |
50 |
2800 |
75.5 |
0.82 |
2.3 |
6.0 |
2.4 |
| Y2-711-4 |
250 |
0.83/1.44 |
380/220 |
50 |
1400 |
67 |
0.68 |
2.4 |
6.0 |
2.4 |
| Y2-712-4 |
370 |
1.12/1.94 |
380/220 |
50 |
1400 |
69.5 |
0.72 |
2.4 |
6.0 |
2.4 |
| Y2-711-6 |
180 |
0.88/1.52 |
380/220 |
50 |
910 |
59 |
0.63 |
2.0 |
5.5 |
2.0 |
| Y2-712-6 |
250 |
1.13/1.96 |
380/220 |
50 |
910 |
63 |
0.64 |
2.0 |
5.5 |
2.0 |
| Y2-801-2 |
750 |
1.8/3.1 |
380/220 |
50 |
2800 |
76.5 |
0.85 |
2.2 |
6.0 |
2.4 |
| Y2-802-2 |
1100 |
2.25/4.42 |
380/220 |
50 |
2800 |
77 |
0.85 |
2.2 |
6.0 |
2.4 |
| Y2-801-4 |
550 |
1.6/2.77 |
380/220 |
50 |
1400 |
73.5 |
0.73 |
2.4 |
6.0 |
2.4 |
| Y2-802-4 |
750 |
2/3.5 |
380/220 |
50 |
1400 |
75.5 |
0.75 |
2.4 |
6.0 |
2.4 |
| Y2-801-6 |
370 |
1.29/2.23 |
380/220 |
50 |
910 |
68 |
0.64 |
2.0 |
5.5 |
2.0 |
| Y2-802-6 |
550 |
1.81/3.14 |
380/220 |
50 |
910 |
71 |
0.65 |
2.0 |
5.5 |
2.0 |
| Y2-801-8 |
180 |
0.86/1.49 |
380/220 |
50 |
700 |
58 |
0.55 |
1.8 |
4.5 |
1.9 |
| Y2-802-8 |
250 |
1.1/1.91 |
380/220 |
50 |
700 |
62 |
0.56 |
1.8 |
4.5 |
1.9 |
| Y2-90S-2 |
2200 |
4.83/8.36 |
380/220 |
50 |
2820 |
78 |
0.85 |
2.2 |
7.0 |
2.4 |
| Y2-90L-2 |
2200 |
4.83/8.36 |
380/220 |
50 |
2820 |
80.5 |
0.86 |
2.2 |
7.0 |
2.4 |
| Y2-90S-4 |
1100 |
2.75/4.76 |
380/220 |
50 |
1400 |
78 |
0.78 |
2.3 |
6.5 |
2.4 |
| Y2-90L-4 |
1500 |
3.65/6.32 |
380/220 |
50 |
1400 |
79 |
0.79 |
2.3 |
6.5 |
2.4 |
| Y2-90S-6 |
750 |
2.26/3.92 |
380/220 |
50 |
910 |
73 |
0.69 |
2.0 |
5.5 |
2.1 |
| Y2-90L-6 |
1100 |
3.2/5.5 |
380/220 |
50 |
910 |
74 |
0.71 |
2.0 |
6.0 |
2.1 |
| Y2-90S-8 |
370 |
1.4/2.4 |
380/220 |
50 |
700 |
68 |
0.60 |
1.8 |
4.5 |
1.9 |
| Y2-90L-8 |
550 |
1.95/3.38 |
380/220 |
50 |
700 |
69 |
0.62 |
1.8 |
4.5 |
1.9 |

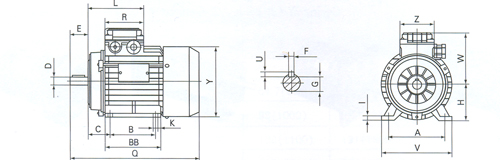

| -B3- |
A |
B |
C |
D |
E |
F |
G |
H |
I |
U |
V |
W |
Y |
BB |
L |
R |
Z |
K |
Q |
| Y2L50 |
80 |
63 |
33 |
9 |
20 |
3 |
7.2 |
50 |
7 |
3 |
100 |
76 |
99 |
73 |
98 |
70 |
65 |
5.8 |
170 |
| Y2L56 |
90 |
71 |
35 |
9 |
20 |
3 |
7.2 |
56 |
8 |
3 |
110 |
93 |
117 |
87 |
99 |
70 |
65 |
5.8 |
195 |
| Y2L63 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
9 |
4 |
123 |
95 |
2122 |
104 |
102 |
70 |
65 |
7 |
222 |
| Y2L71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
10 |
5 |
136 |
108 |
137 |
113 |
114 |
80 |
75 |
8 |
245 |
| Y2L80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
6 |
154 |
118 |
156 |
125 |
118 |
80 |
75 |
10 |
283 |
| Y2L90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
12 |
7 |
180 |
128 |
169 |
155 |
134 |
98.5 |
98.5 |
10 |
336 |
| Y2L90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
12 |
7 |
18 |
0128 |
16 |
915 |
134 |
98.5 |
98.5 |
10 |
336 |

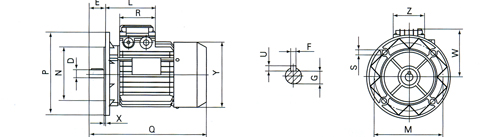

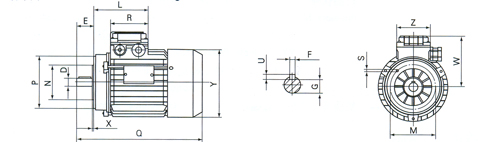

法兰安装 IMB5 flange mounting IMB5
| -14- |
D |
E |
F |
G |
M |
N |
P |
s |
u |
W |
X |
Y |
L |
R |
Z |
Q |
| Y2L50 |
9 |
20 |
3 |
7.2 |
55 |
40 |
70 |
M5 |
3 |
76 |
2.5 |
99 |
98 |
70 |
65 |
170 |
| Y2L56 |
9 |
20 |
3 |
7.2 |
65 |
50 |
80 |
M5 |
3 |
93 |
2.5 |
117 |
100 |
70 |
65 |
197 |
| Y2L63 |
11 |
23 |
4 |
8.5 |
75 |
60 |
90 |
M5 |
4 |
95 |
3 |
122 |
102 |
70 |
65 |
224 |
| Y2L71 |
14 |
30 |
5 |
11 |
85 |
70 |
105 |
M5 |
5 |
108 |
3.5 |
137 |
114 |
80 |
75 |
239 |
| Y2L80 |
19 |
40 |
6 |
15.5 |
100 |
80 |
120 |
M5 |
6 |
118 |
3.5 |
156 |
118 |
80 |
75 |
278 |
| Y2L90 |
24 |
50 |
8 |
20 |
115 |
95 |
138 |
M5 |
7 |
128 |
3.5 |
169 |
135 |
98.5 |
98.5 |
336 |
